Bridges of Iron and Steel

Ironbridge | Cound Arbour | Tickford Bridge, Northants | Brabyns Park Bridge, Ches | Cantlop | Hall Park | Gadebridge | Stourport Bridge | Condover

"The" Iron Bridge, 1777-80

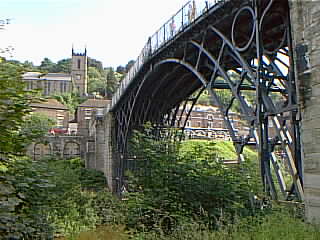

The world's first, internationally most famous, and locally largest iron bridge, pictured above, is that which gives its name to the town of Iron Bridge in the south of Telford and is the town's most famous feature. It was built across the River Severn in 1779 by local ironmaster Abraham Darby III to demonstrate the quality of the iron now produced by the process his grandfather invented to smelt iron using coal rather than coke. Immediately, it was world-famous, President Thomas Jefferson of the USA being one of the first to buy an engraving of it. Living close by, I became interested first in that bridge, then in others nearby, then in yet others further afield.

Cound Arbour Bridge, 1797

Upstream of Ironbridge is the confluence of the Severn and the Cound Brook, and it is not surprising that when Thomas Telford, then Road Engineer to Shropshire County, designed two bridges to cross the brook, he should use the local industry to build them.

This iron bridge with stone buttresses is found by approaching Cound from the A458 to the north.

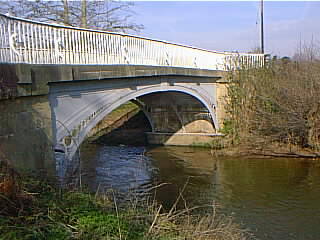

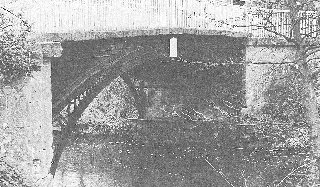

Photo 1 is some years old - the tree has grown considerably - and was sent me by Ellen Francis Macinterney of the University of Adalaide, with the question which started me on this most interesting investigation. Here is her Finite Element Analysis (large).

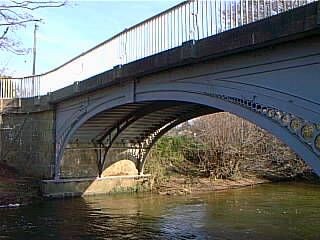

Photo 2 is taken from almost the same angle - the tree is to the right of the camera - and shows the bridge today. The legend "Cast at Coalbrookdale 1797" at the apex of the arch dates it less than twenty years after the Darby iron bridge.

Photo 3 shows the construction of the cast ribs under the bridge.

Construction of this bridge in detail (Large file)

Tickford Bridge, 1810

Tickford Bridge, Newport Pagnall, Northants

Brabyns Park Bridge, Marple, Cheshire, 1813

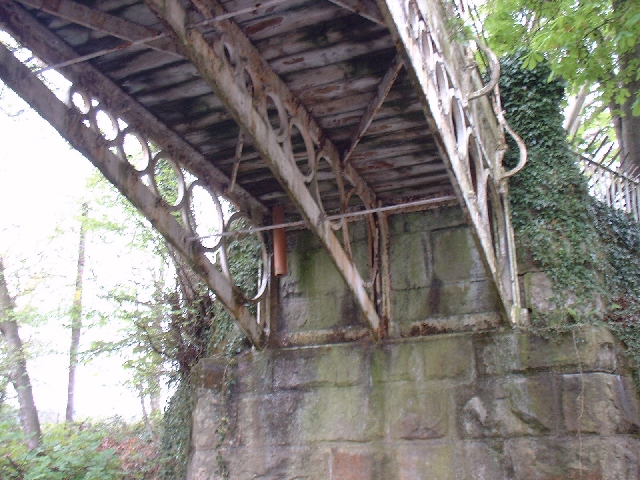

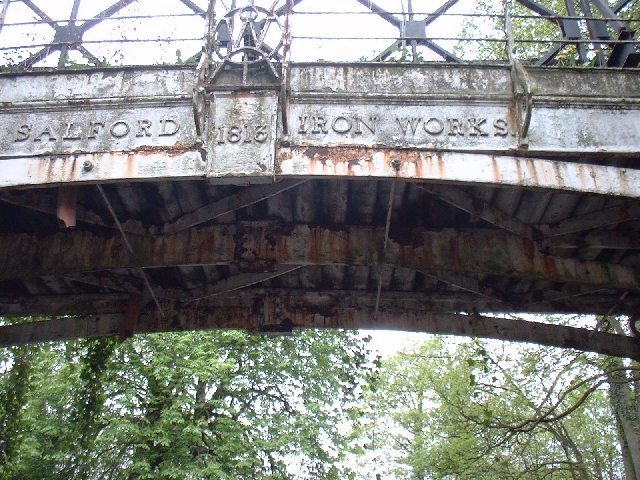

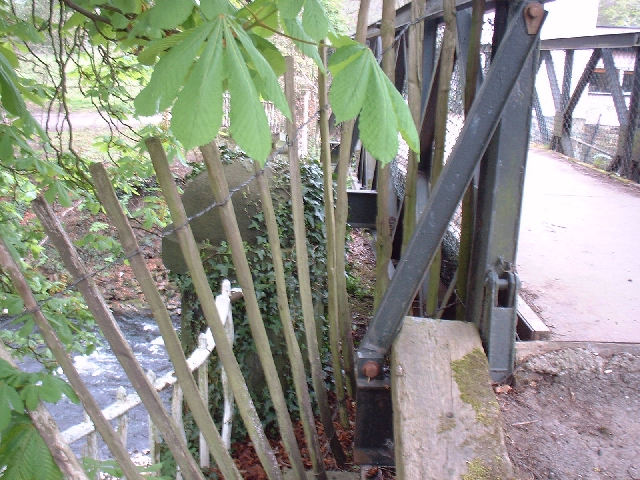

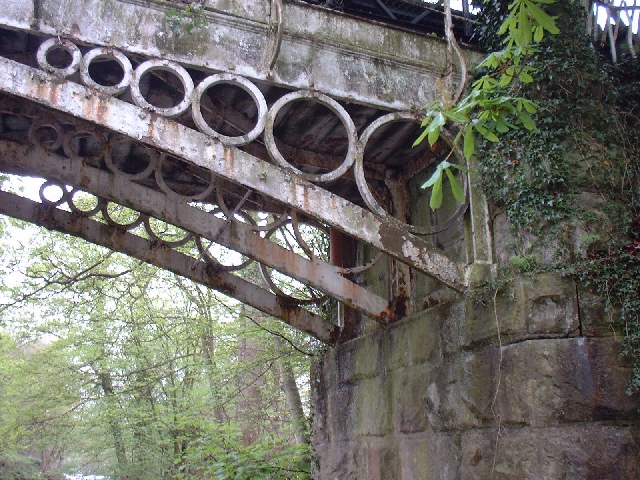

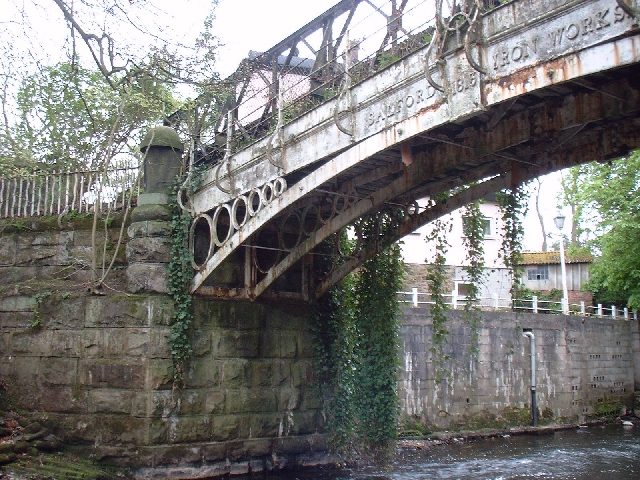

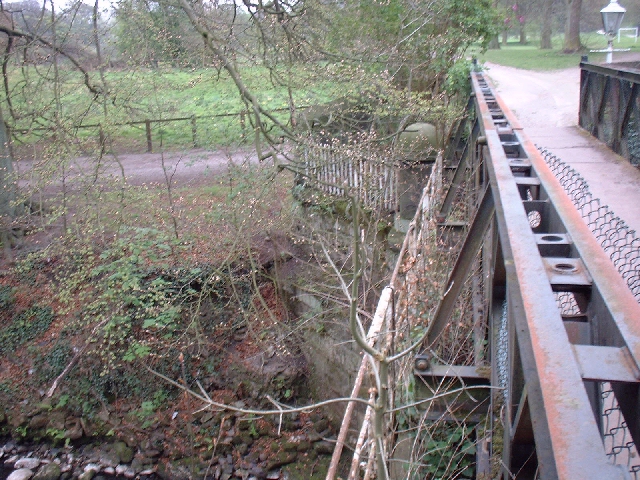

Brabyns Bridge is a lighter affair with a single arch, carrying a narrower road than Cantlop Bridge. The plate at the apex gives the date and Salford Iron Works, as the maker, placing it chronologically between those two. Although auperficially similar, by looking underneath, one can see that the bridge deck was of wood (like the Woodbridge of 1780 downstrean of the Ironbridge, long gone). Also, the ironwork is bedded into an angle in the masonry of the buttresses, instead of sitting on an angled face. The orginal parapet rails are still there. It stood on the approach to Brabyns Hall, and the ends of the parapets have ornamental posts.

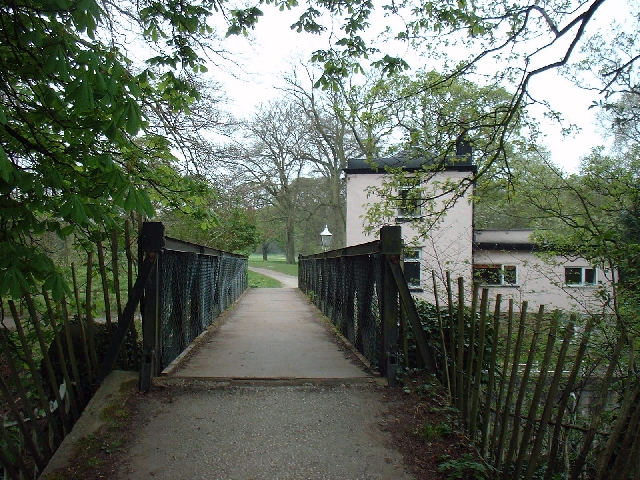

An account of its history, the reason it is disfigured by a bailey bridge and for its poor condition can be found on Mark Whittaker's The Marple Website here.

Update 13/06/2009: The restored Brabyns Bridge was opened today! See here, and my photos of the restored bridge here.

Cantlop Bridge, c.1820?

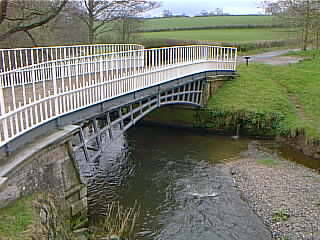

Photo 1This is the second of Telford's bridges across the Cound Brook. The photo shows a rather similar bridge to Cound Arbour, which lies on the back road north from the tiny village of Cantlop. It is in the care of English Heritage.

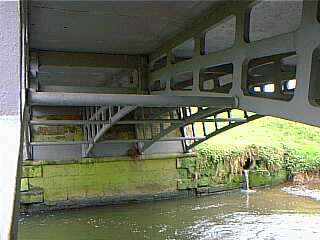

Photo 2 shows the construction once again.

Hall Park Bridge (Date?)

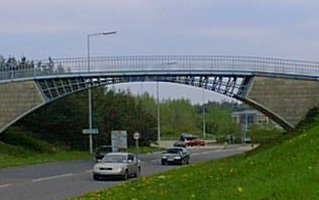

Photo 1 shows a bridge now used as a footbridge over an arterial road in Telford New Town, but it was formerly "at Cound", according to the plate at the south end, and was moved in 1967. It is also a Telford bridge. It is surely too narrow to have taken the main Shrewsbury - Bridgnorth turnpike road? Yet all other extant crossings of the Cound still have their bridges? I'll try to follow this up. If you know...

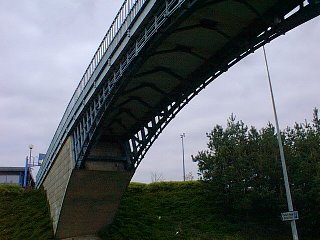

Photo 2 doesn't show the construction too well - sky was too bright.

Gadebridge Park Bridge, Hemel Hempstead, c.1840

I spotted this one when passing by, and unfortunately didn't have a camera handy. It is a small, low bridge with three ribs supported on an angled face on the stone of the buttress, and the original (wooden?) deck is gone, replaced by a concrete one. The carriageway to Gadebridge House originally passed through a ford until, around 1840, Sir Astley Paston Cooper arranged for a local iron founder, Joseph Cranstone, to erect a bridge. With its attractive design resembling bamboo, it echoes the Chinese style popular at that time (Quote from a now-defunct Hemel Hepstead history site).

Stourport Bridge, 1870

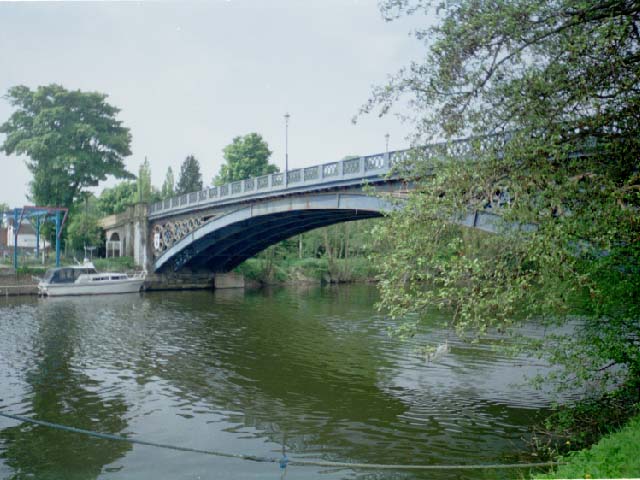

Photo 1 shows the downstream side of the bridge: note the similarities with the smaller, earlier bridges above.

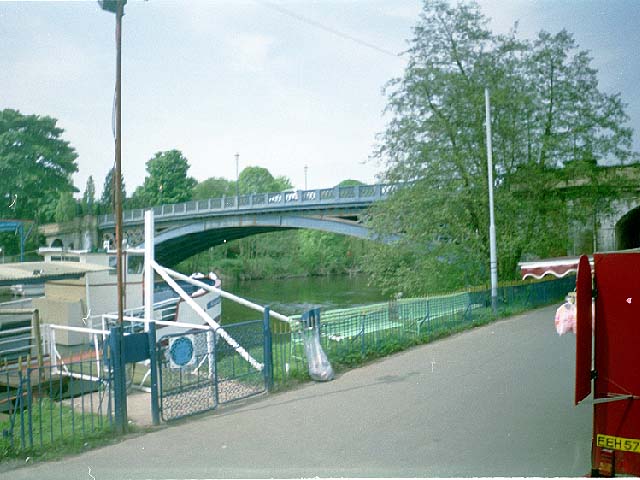

Photo 2 taken from further away, shows the flatter arch and longer span of this bridge.

Condover "New" Bridge

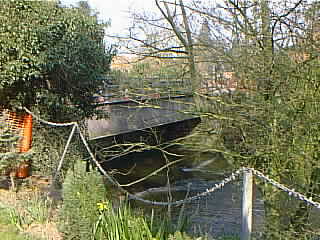

Photo 1 shows a steel girder railway bridge of much later design and an extremely common type. I include it because I was lucky enough to get information about it from the landowner who allowed me to walk on his lawn to photograph it.

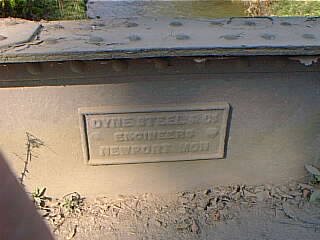

Photo 2 shows the plate on the bridge, which reads Dyne Steel Co Engineers Newport Mon: not, then, of local workmanship. Photo 3 shows the lawn, filled in over the lane that led down to the former ford. In 1941, when the present landowner came from North Wales, the line of the road was still apparent, with an iron railing in place on the left. It was overgrown with large trees, which dates the "new" bridge back into the nineteenth century.
